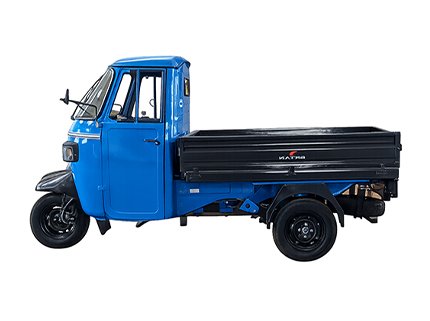

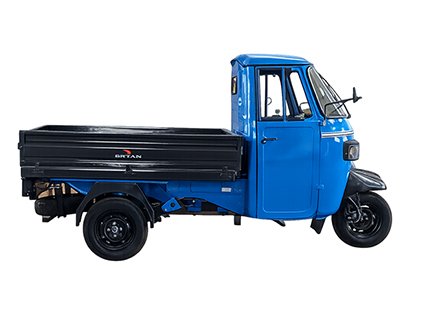

MAXXRISE XL
Lorem Ipsum has been the industry’s standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book. It has survived not only five centuries, but also the leap into electronic typesetting, remaining essentially unchanged.
Key Specifications
Every specification on the MAXXRISE GX is a reflection of decades of automotive manufacturing expertise, making it India’s best commercial electric vehicle for businesses that demand performance and reliability every day.
Certified Payload
595 kg
Battery Capacity
11.8 kWh
Peak Motor Power
10 kW
Real-World Range
150 km
Charging Time
5 - 5.5 Hrs
Gradeability
23%

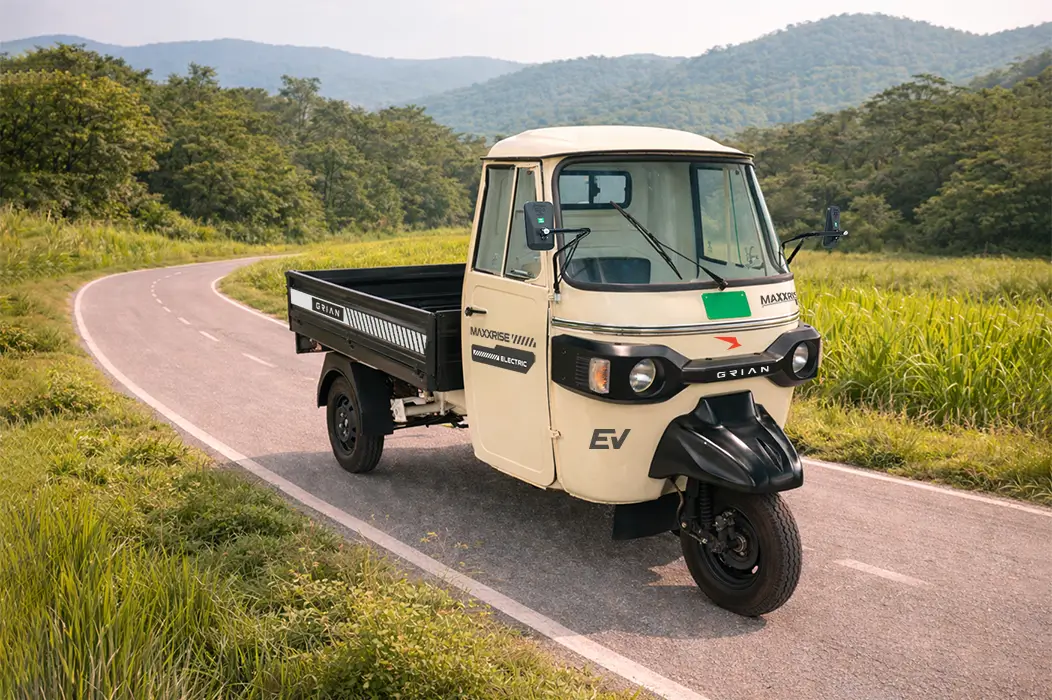

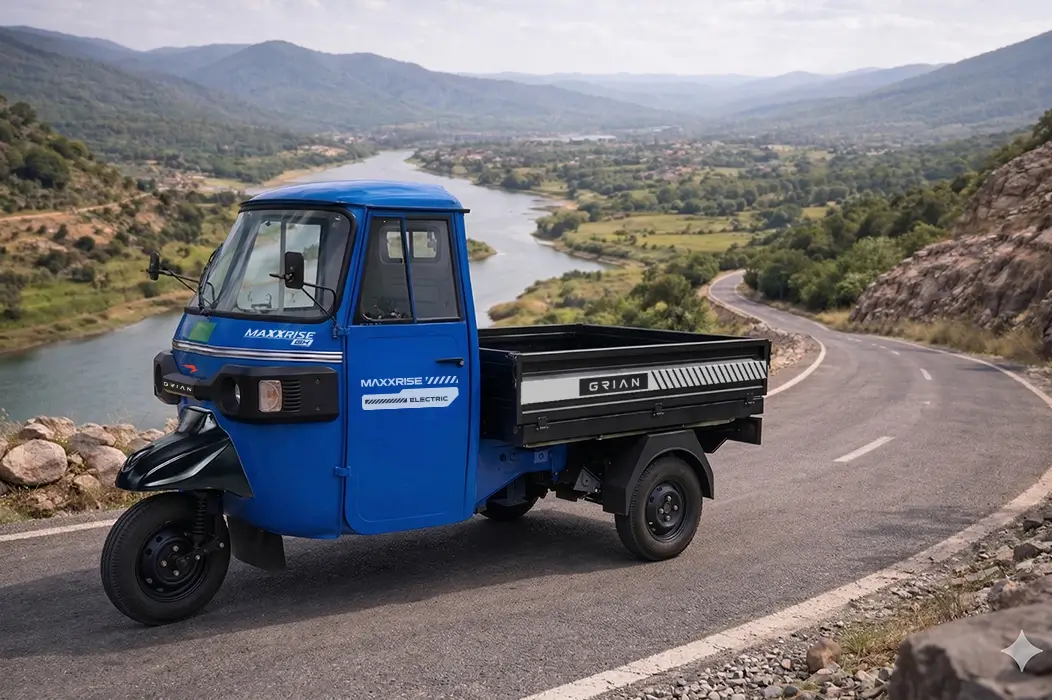

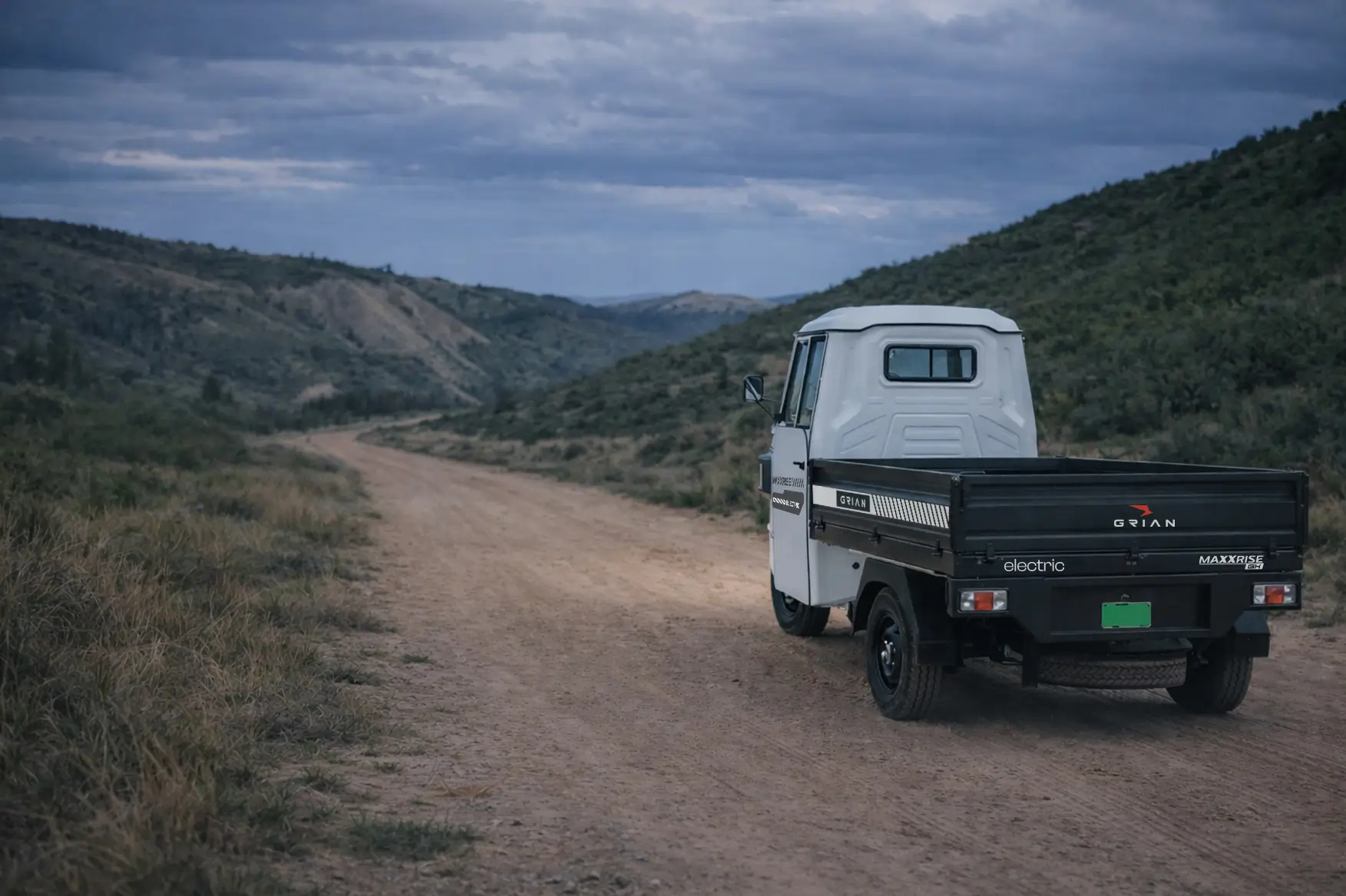

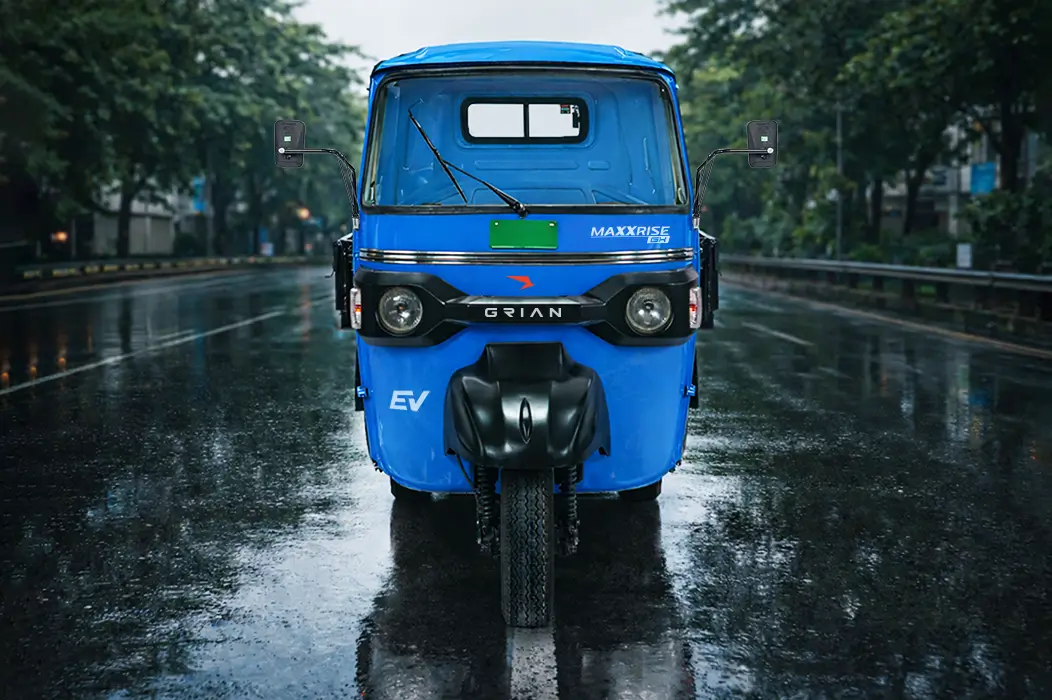

India's Best Open Cargo EV
When it comes to India's best commercial electric vehicle, the MAXXRISE GX stands apart, engineered to carry more, climb higher and run longer every single day.
Built to the Highest Standard
Every specification below defines why the MAXXRISE GX is India's best commercial electric vehicle, engineered and validated to deliver performance and reliability. Each number is the result of decades of automotive manufacturing expertise, rigorous testing and an unwavering commitment to building vehicles that Indian businesses can truly depend on every single day.
Steering System
Handle Bar
Turning Radius
3.05 m
Wheel Track
1280 mm
Seating Capacity
Driver + Cargo
Front Suspension
Twin Shock Absorber with Spring
Rear Suspension
Independent Trailing Arm with Spring
Brake Actuation
Hydraulic Single Pedal
Front Brake
Hydraulic Disc Brake
Rear Brake
Hydraulic Drum Brake
Parking Brake
Mechanical Lever
Certified Payload
595 kg
Gross Vehicle Weight
1125 kg
ARAI Certified Range
702 km
Real-World Range
150 km
Maximum Speed
47 km/h
Gradeability
23% (12.95°)
Motor Type
IPM (Interior Permanent Magnet)
Peak Power
10 kW
Drive Type
Rear Wheel Drive
Peak Torque
49 Nm
Transmission
Automatic
Vehicle Type
L5N
Battery Type
Lithium Ferro Phosphate (LiFePO4)
Battery Location
Chassis Integration
Voltage
51.2 V
Capacity
230 Ah
Energy
11.8 kWh
Battery Protection
IP67 Rated
Charging Time
5 - 5.5 hours
Charger Type
Onboard + Offboard
Charging Input
AC 230V Standard
Battery Warranty
3 Years
Battery Life Cycle
1200 Cycles
Charging Socket
Universal AC Socket
Dimensions (LxWxH)
3315 x 1470 x 2180 mm
Wheelbase
2170 mm
Ground Clearance (Laden)
210 mm
Ground Clearance (Unladen)
240 mm
Kerb Weight
530 kg
Cargo Tray Size
1680 x 1450 x 380 mm
Tyre Type
Radial Tubeless
Tyre Size
145 R12
Front Light
Halogen
Rear Light
LED
Cabin Light
Available
Reverse Buzzer
Available
Emission Free
Zero Emissions
Fire Extinguisher
Available
Battery Safety
IP67 Rated
Certification
ICAT Approved
Quality Standard
ISO 9001:2015
Warranty
3 Years / 1200 Life Cycles

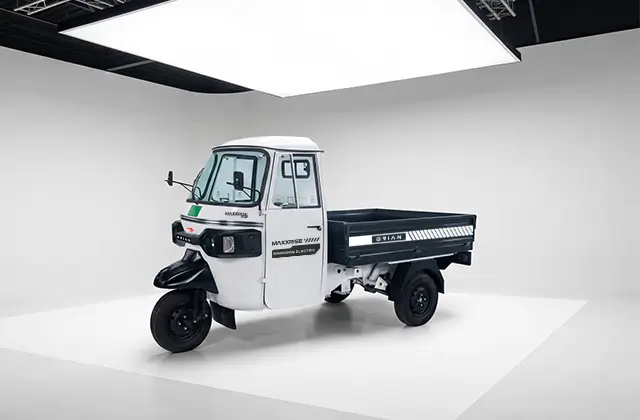

Equipped for Every Demand
Every MAXXRISE GX we deliver is fully equipped. That is our commitment to you.
As India’s best commercial electric vehicle, the MAXXRISE GX is built to deliver more than just performance. Every standard feature is carefully selected and built in to ensure your business operates with maximum safety, comfort and efficiency from the very first day of operation.
- Waterproof, dustproof and fireproof. Built for every condition.
- Full directional control with Reverse, Neutral, Forward and Boost.
- Real time fleet monitoring keeping your business always connected.
- Precise, powerful stopping control on every road, every time.
- Enhanced rear visibility for safer and smarter manoeuvring every day.
